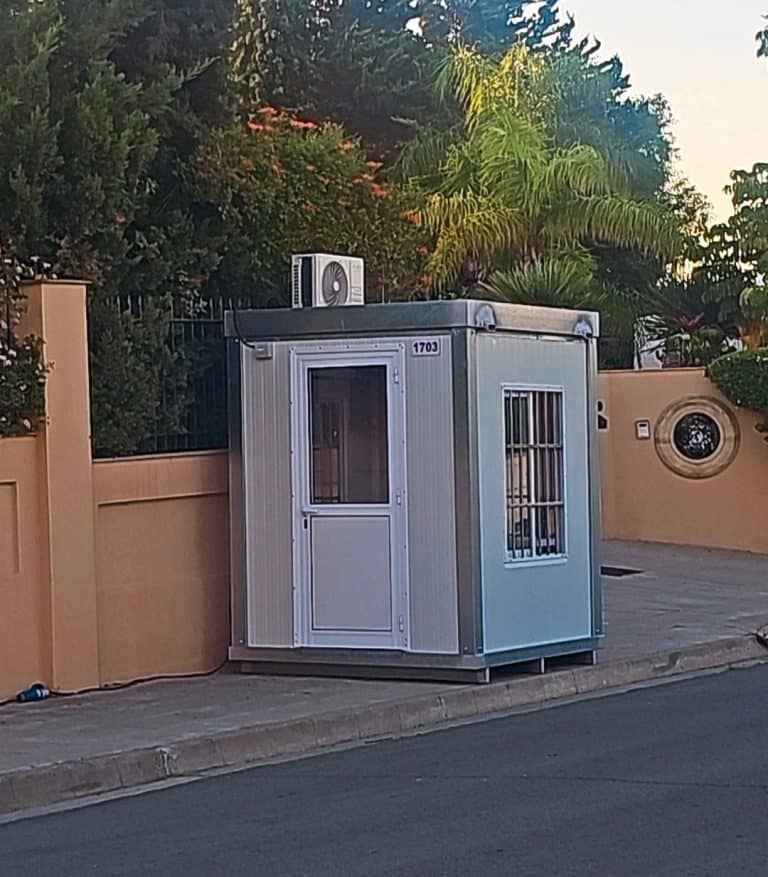

Guard House
Prefabricated unit with external dimensions (W/L/H) 200 x 200 x 258*.
Ideal for use as a guard house/ watch tower.
It has one (1) external door and three (3) windows with security bars.
Electrical installation
Provision of electrical supply (single phase).
In order to make the connection with the supply, a certified electrician is required.
*Size can be customized
Share on:
Technical specifications
- STEEL FRAMEWORK (roof, floor, corners) cold formed steel profiles in a thickness of 20/10 – Colour Ral 9002.
- PAINTING: of the internal and external surfaces with bi-component epoxy coats RAL 9002.
- FLOOR: surface in chipboard, 18mm, covered with Linoleum.
- WALLS: Consisting of thermo-insulating sandwich panel, with inner and external surfaces in galvanized and pre-painted metal sheet and inside core in self-extinguishing polyurethane foam, thickness 50mm (U=0.46 w/mqK). Internal and external surfaces are primed and finished with epoxy coats RAL 9002.
- ROOF: Consisting of thermo-insulating sandwich panel, with inner and external surfaces in galvanized and pre-painted metal sheet and inside core in self-extinguishing polyurethane foam, thickness 50mm. Internal and external surfaces are primed and finished with epoxy coats RAL 9002. The container has also a supplementary roof to help the drainage of the water.
- DOORS AND WINDOWS: extruded aluminum profiles, white colour, sheet metal panel insulated with polyurethane foam.
- No1 external door, ½ double glazing 4/9/4 and protection bars and ½ sheet metal panel insulated with polyurethane foam, dim. 970x2050h;
- No2 turn and tilt windows, double glazing 4/9/4 with aluminum bars and mosquito net, dim. 1000x1000h.
- ELECTRICAL SYSTEM: According to the CEE standards in force.
- No1 electric fuse box, with RDC and magnetotermic circuit breaker.
- No2 ceiling lights 1x36w with neon lamp and switch;
- No2 socket;
- 1 CEE external plug
